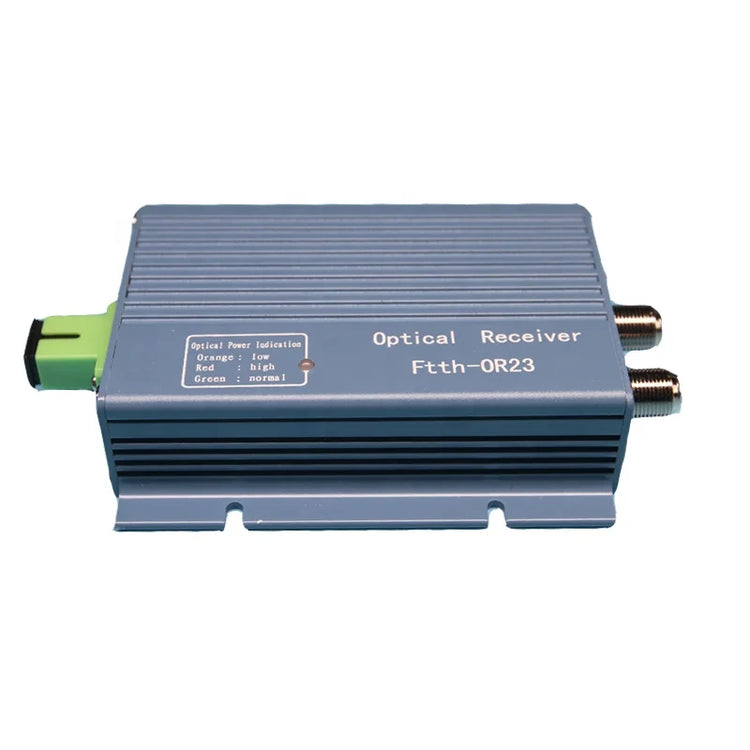

JMT-160650 High Level 100dBuV Optical Receiver OR23B for CATV FTTH - Dual Output, 1550nm SC Connector

The JMT-160650 High Level 100dBuV Optical Receiver OR23B is a sophisticated solution designed for CATV FTTH networks. This dual output receiver operates at a wavelength of 1550nm and features an SC connector, ensuring seamless integration into existing systems.

With its low power consumption and an advanced AGC optical constant level output, the OR23B stands out for its compact design and high reliability. Constructed with a brushed aluminium shell, it provides excellent heat dispersion, while its aluminium alloy casing enhances durability. The built-in optical control AGC circuit allows for easy installation and setup, making it a practical choice for FTTH CATV network building.

Key features include:

- Capability to handle optical input ranges of up to -15 dBm for analogue signals and -23 dBm for digital signals.
- Adjustable output levels between 0 to 18 dB, with an impressive output level exceeding 96 dBuV.
- AGC control range from 0 to -15 dBm, maintaining a consistent output level.
- Designed with a total power consumption of less than 2 watts, featuring a reliable switching power supply with an optical inspection circuit.

The technical specifications further enhance its performance, including a return loss of ≥45 dB and an operating temperature range from -20 to +60 degrees Celsius. With dimensions of 128mm x 80mm x 26mm, this receiver is compact yet powerful, ready to meet the needs of modern CATV applications.

The JMT-160650 OR23B is an essential component for those looking to implement a robust, efficient FTTH network, offering reliable performance and ease of use in one complete package.
